Facoemulsificatore Premium/Value M2000
Caratteristiche
- Rimozione della cataratta avanzata
- Esibizione all'avanguardia
- Cold Phaco Capability
- Easy-to-Use Precise Controls
- FDA Approved
- ISO Certified Quality
- Affordable Price
- Made in the USA
Caratteristiche of M2000 Phacoemusifier
|
|
Premium M2000 Parameters
- Mode and Specification
- General Specification
| Mode | Specification |
| Cautery | Cautery Power:0 A 100%, 1 MHz, 10W into 150 ohms |
| I/A | Aspiration Rate:0 A 50 cc/MIN I/A Vacuum:0 to 650mmHg |
| U/S | U/S Power:0 A 100%, 40 KHz Aspiration Rate:0 to 50cc/MIN U/S Vacuum:0 to 650mmHg |
| U/S Pulse |
U/S Power:0 A 100%, 40 KHz Pulse Rates: LO: 4.5 PPS MED: 6.5 PPS HI: 10 PPS XTR: 15 PPS |
| U/S Cold | U/S Power:0 A 100%, 40 KHz Aspiration Rate:0 to 50cc/MIN U/S Vacuum:0 to 650mmHgPulse Widths:LO: 20 mSMED: 20 mSHI: 90 mSXTR: 200 mS |
| Vitrectomia |
Cut Rate: 60 A 600 cuts/Min, Single Cut Aspiration Rate: 0 to 25cc/Min I/A Vacuum: 0 A 500 mmhg |
|
Dimensioni |
Altezza |
14.6cm |
|
Width |
41.2cm | |
|
Depth |
33.0cm |
|
| Peso |
7.4kg |
|
| Electrical |
100 to 240V AC, 50 A 60 Hz |
|
Principale Caratteristiche
Premium M2000
Standard Accessories
- Pandino U/S.
- Pedale
- Tubing Kit
Value M2000
Accessori opzionali
- Suggerimenti Phaco
- Manica di irrigazione
- I/un manipolo
- Camera di prova
- Suggerimenti per l'aspirazione
- Vitrettore
- Cautery Forceps/Cable
Value M2000 Parametro tecnico
- Scheda dati
|
Mode |
Specification |
|
Cautery |
Cautery Power:0 A 100%, 1 MHz, 10W into 150 ohms |
| Irrigazione |
Footpedal-Controlled Pinch Value Actuation |
|
I/A |
Aspiration Rate:0 A 40 cc/MIN |
| U/S |
U/S Power:0 A 100%, 40 KHz |
|
U/S Pulse |
U/S Power:0 A 100%, 40 KHz Pulse Rates: 10 PPS
|
|
Vitrectomia |
Cut Rate: 60 A 600 cuts/Min, Single Cut
Aspiration Rate: 0 A 20 cc/Min I/A Vacuum: 0 A 500 mmhg |
|
Dimensioni |
11.0cm*40.0cm*32.0cm(H/W/D) |
| Peso |
6.2kg |
| Electrical |
100 to 240V AC, 50 A 60 Hz |

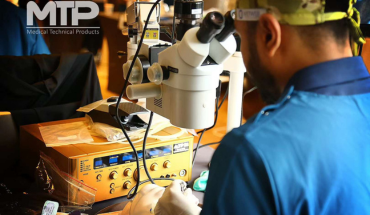

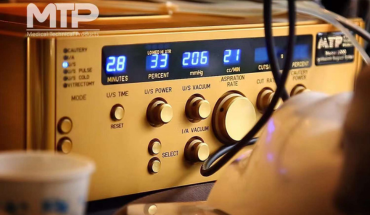

Application of Premium M2000 Phacoemulsifier (3)
M2000 Dettagli
The low-pulsation, peristaltic pump gives the cataract surgeon complete vacuum and aspiration flow rate control, as well as freedom from anterior chamber shallowing. Multiple audible tones continuously convey system status. Vacuum is fully adjustable, providing safe and adequate vacuum for the latest phaco techniques.
Multi-function footpedals with tactile feedback provide precise proportional control. Cast aluminum construction and polyurethane-armored cable make these footpedals extremely durable, yet small and lightweight.
An internal air compressor eliminates the connection to an external air source for vitrectomy. Cutting rate is adjustable over a wide range, including a single-cut setting for optional pneumatic scissors. Bipolar diathermy delivers predictable tissue cauterization.
Unsurpassed component quality, from the precision peristaltic pump to the rugged stainless steel vacuum transducer, our phacos are built to last.
